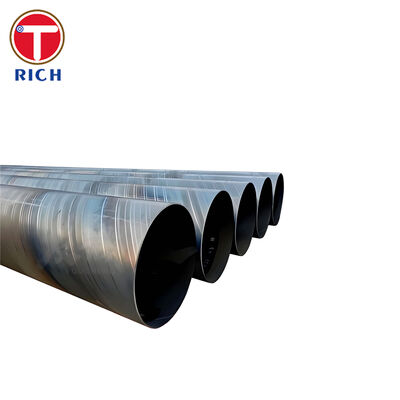

ASTM A139 Carbon Steel Spiral-Welded Pipe for Fluid Transport

ASTM A139 carbon steel spiral-welded pipe is an electric-fusion arc-welded pipe manufactured with a continuous helical seam for transporting water, industrial liquids, gas, or vapor. The specification covers five pipe-mill grades—Grades A, B, C, D, and E—with minimum yield strengths from 205 to 360 MPa.

The spiral-forming process supports economical production of large outside diameters while maintaining controlled circumference, wall thickness, end ovality, and weld integrity. Each supplied pipe length can be hydrostatically tested, and the product may be furnished with bare, varnished, epoxy-coated, polyethylene-coated, or cement-mortar-lined surfaces according to the operating environment.

ASTM A139 applies to electric-fusion arc-welded straight-seam or helical-seam pipe from NPS 4 upward, with nominal wall thicknesses not exceeding 25.4 mm. The pipe is specifically intended for conveying liquid, gas, or vapor.

Specifications

Dimensional tolerances, end preparation and standard length requirements are based on ASTM A139 provisions.

Main Characteristics

Complete-Penetration Helical Weld

The pipe seam is manufactured as a complete-joint-penetration groove weld. The continuous helical configuration distributes the seam around the pipe circumference and permits large-diameter pipe to be produced from controlled-width steel coil or plate.

Defined Production-Weld Strength

Production-weld tensile specimens taken across the weld must achieve at least 95% of the specified minimum tensile strength of the steel grade. During welding-procedure qualification, reduced-section weld specimens must achieve at least 100% of the specified minimum tensile strength of the selected grade.

Hydrostatic Testing of Each Pipe Length

ASTM A139 requires each pipe length to undergo hydrostatic testing. The standard test pressure is calculated using:

P = 2St / D

Where:

• P = hydrostatic test pressure
• S = 60% to 85% of the specified minimum yield strength
• t = specified wall thickness
• D = specified outside diameter

The standard pressure is limited to 19.3 MPa unless otherwise addressed by an agreed testing condition. Test pressure is held for at least five seconds.

Controlled End Geometry

Within 100 mm of the pipe ends, out-of-roundness must not exceed 1% of the specified diameter. This control improves field alignment, circumferential welding consistency and fit-up with fabricated fittings.

Five Strength Levels

The five ASTM A139 grades provide minimum yield strengths ranging from 205 MPa for Grade A to 360 MPa for Grade E. This allows the pipe grade to be selected according to diameter, wall thickness, design pressure and installation loading.

Our Advantages

1. How Is Weld Integrity Verified on Large-Diameter Spiral Pipe?

Buyer concern frequently centers on incomplete penetration, slag inclusion, lack of fusion and discontinuities at strip joints.

Our production control can include:

• Automatic submerged-arc welding from the inside and outside
• Qualified welding procedures and welding operators
• Continuous monitoring of welding current, voltage and travel speed
• Visual inspection of the entire weld
• Ultrasonic examination of the spiral seam
• Radiographic examination of weld intersections and repaired areas
• Transverse production-weld tensile testing
• Hydrostatic testing of each finished pipe length

The inspection scope and acceptance criteria are confirmed before production and stated in the inspection and test plan.

2. How Are Pipe-End Fit-Up and Field Welding Problems Reduced?

Large-diameter pipe with excessive ovality can increase alignment time and produce uneven root gaps during site welding.

Pipe ends are mechanically sized and checked for circumference, diameter and ovality. ASTM A139 limits end ovality to 1% within 100 mm of each end. Where tighter site-fit-up control is required, project-specific end tolerances, internal line-up compatibility and match marking can be agreed before manufacture.

3. How Is Internal and External Corrosion Addressed?

Bare carbon steel is not inherently corrosion-resistant. Coating selection must therefore match the transported fluid, soil condition, operating temperature and installation method.

Available corrosion-protection systems include:

• Fusion-bonded epoxy for buried or immersed service
• Three-layer polyethylene for buried pipelines
• Three-layer polypropylene for higher operating temperatures
• Liquid epoxy internal lining for treated-water service
• Cement-mortar lining for large-diameter water transmission
• Zinc-rich primer or project-specific external paint systems
• Coating holiday detection and dry-film-thickness inspection

Coating type, thickness, surface preparation grade and repair procedure should be specified in the purchase order rather than treated as unspecified commercial finishing.

Execution Standards

These standards are not automatically interchangeable. Grade, chemistry, mechanical properties, inspection frequency, hydrostatic pressure and dimensional tolerances must be checked against the contractual specification.

Application: Municipal Raw-Water Transmission Main

ASTM A139 spiral-welded pipe can be used as a large-diameter raw-water transmission main connecting a reservoir intake station to a municipal water-treatment plant.

For this application, the pipe may be supplied with:

• Grade B, C, D or E selected by hydraulic and structural design
• Cement-mortar or liquid-epoxy internal lining
• FBE or 3LPE external coating
• Beveled ends for field butt welding
• Hydrostatic testing of every pipe length
• Ultrasonic examination of the spiral seam
• Fabricated bends, reducers, tees and flanged connections
• Insulating joints and cathodic-protection provisions where required

Final grade, wall thickness, surge-pressure allowance, external loading, corrosion allowance and coating system must be determined by the pipeline design engineer.

Chemical Composition

Maximum percentage by heat analysis

The chemical limits above are specified for ASTM A139 Grades A through E, with analysis performed in accordance with ASTM A751.

Mechanical Properties
